HOTFIX Honeywell Home

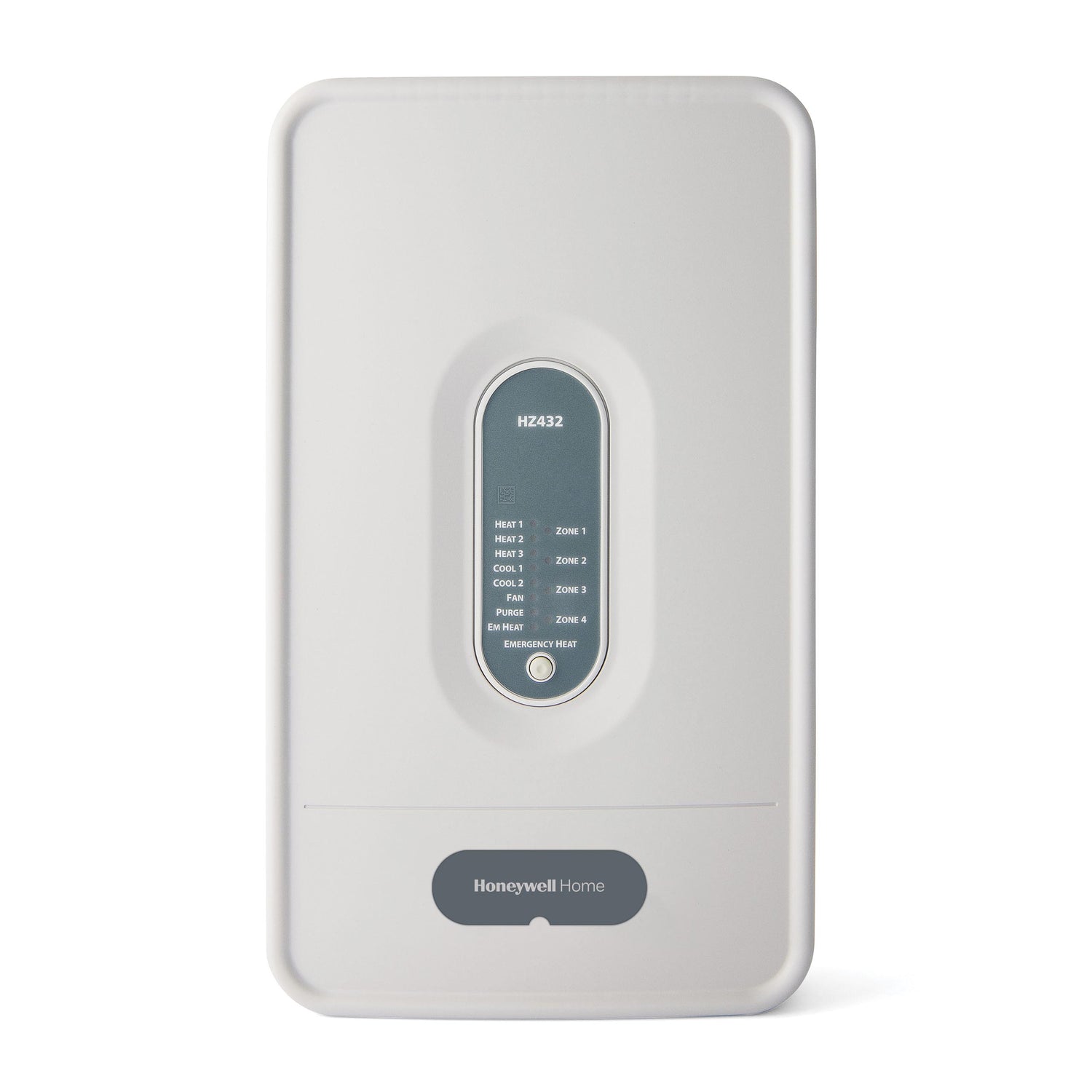

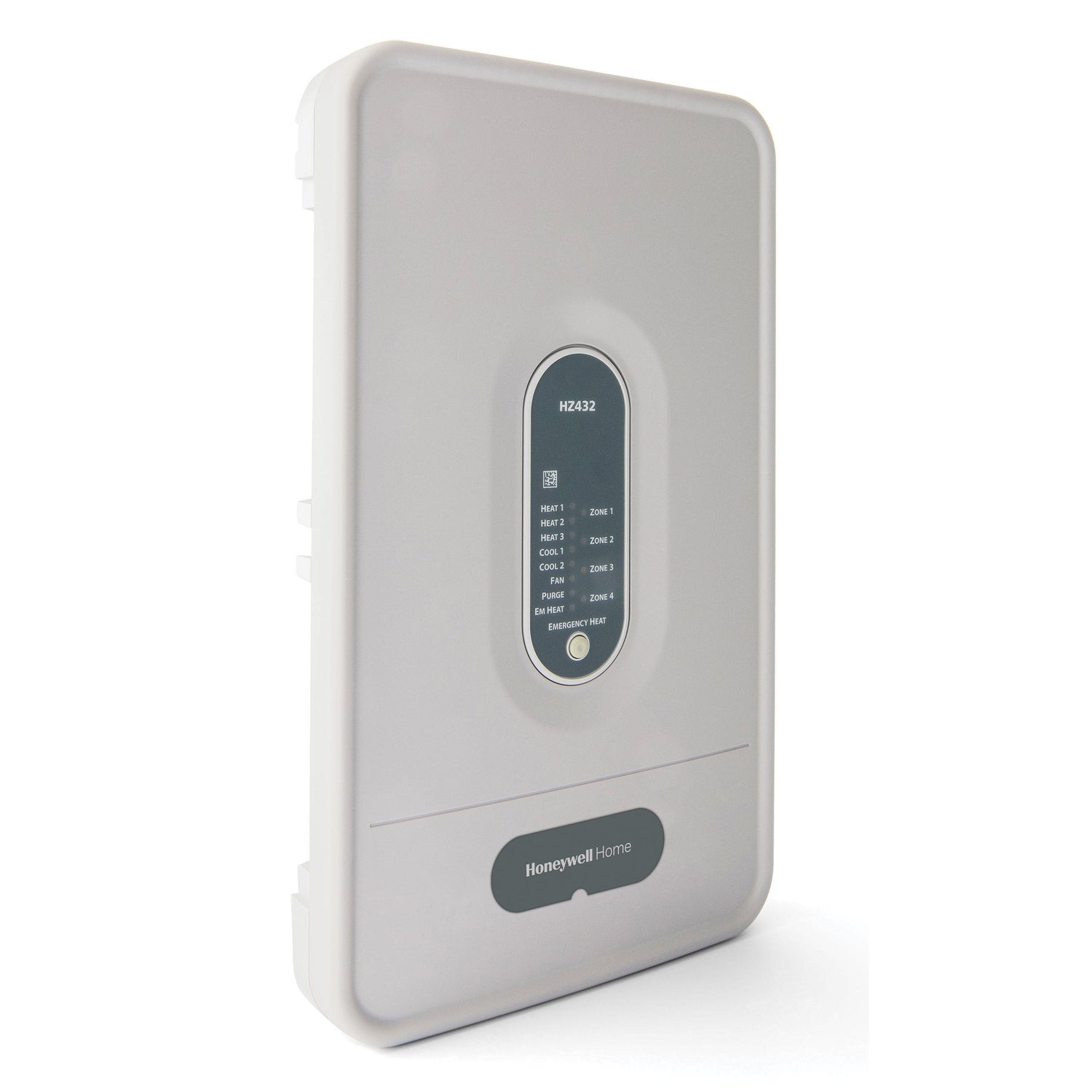

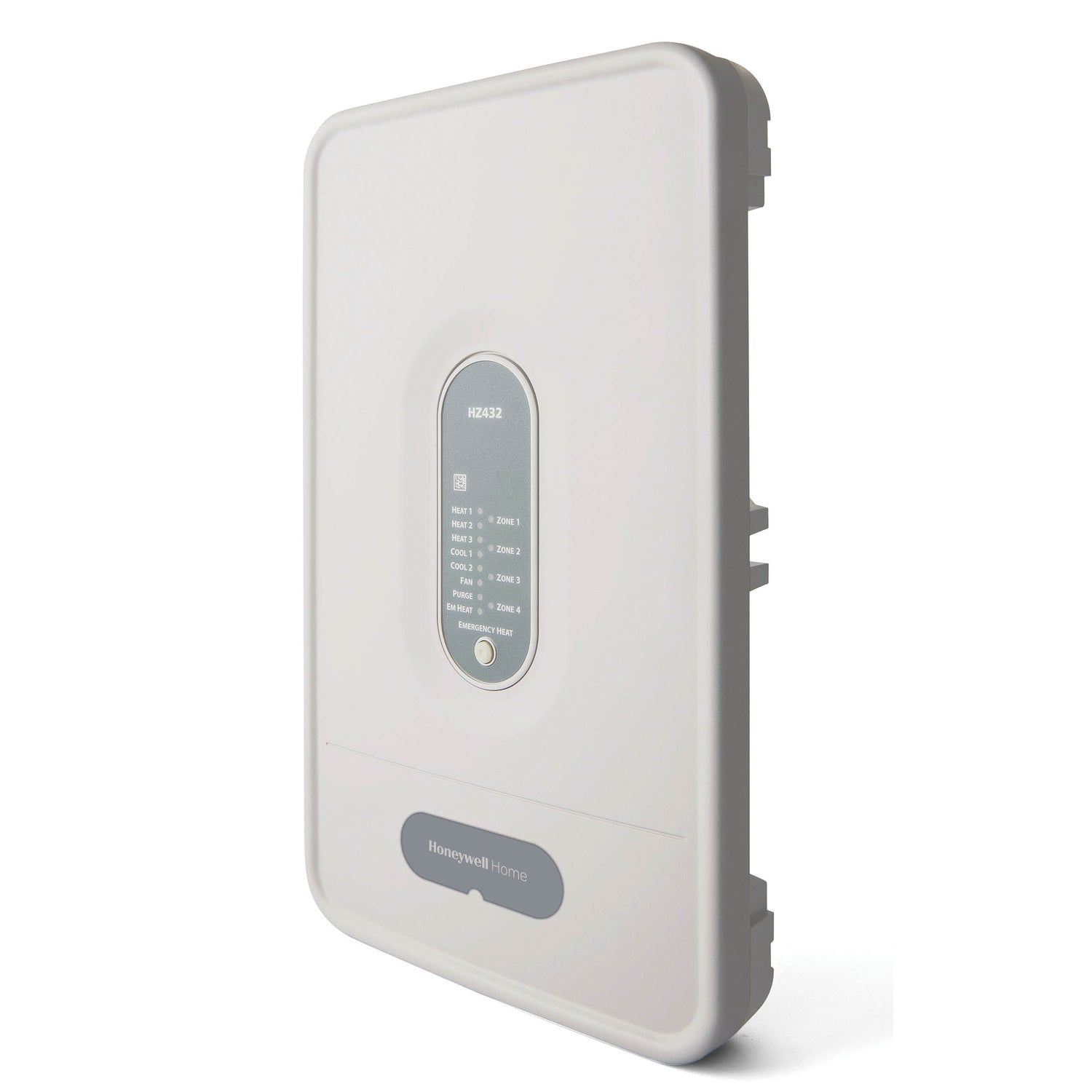

TrueZONE® HZ432 Panel

SKU: HZ432/U

Intelligent Temperature Zoning

The TrueZONE® HZ432 is a 4 zone panel that can be used to control conventional, heat pump, or dual fuel applications up to 3H/2C. It features robust push terminals, common-sense LEDs, variable-speed fan control, and has a small footprint for mounting flexibility.

Pro Install
GO TO SUPPORT
Honeywell Home HOTFIX

Truezone® Hz432 Panel

SKU: HZ432/U
Pro Install
Product Overview

Product Overview

This TrueZONE® HZ432 Panel is for use in conventional, heat pump or dual fuel applications. With Intuitive Installer Setup, the easy-to-follow, digital display uses real language to guide users through four easy steps. It also comes with a Standard Checkout Procedure.

Other features include:

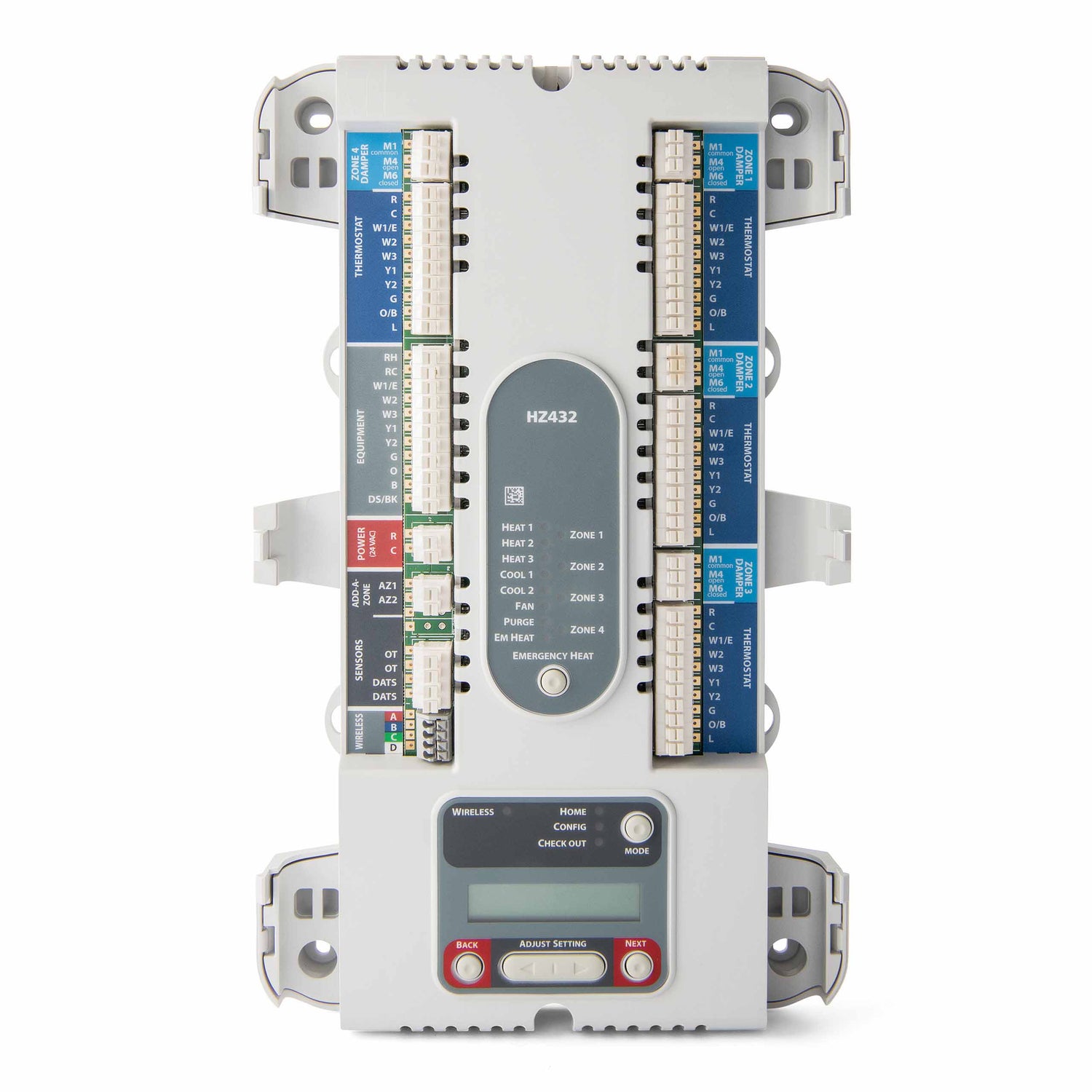

  • Robust Push Terminals
  • Variable-Speed Fan Control
  • Discharge Air Temperature Staging
  • Advanced Dual-Fuel Operation
  • Easy-To-Use Checkout Mode
  • RedLINK™ enabled for up to 4 wireless zones when used with THM4000R1000 Wireless Adapter and RedLINK FocusPRO, VisionPRO, or Prestige thermostats
  • Controls up to 3 Heat/2 Cool conventional or heat pump
  • Controls up to two stages compressor and two stages fossil fuel in dual fuel mode

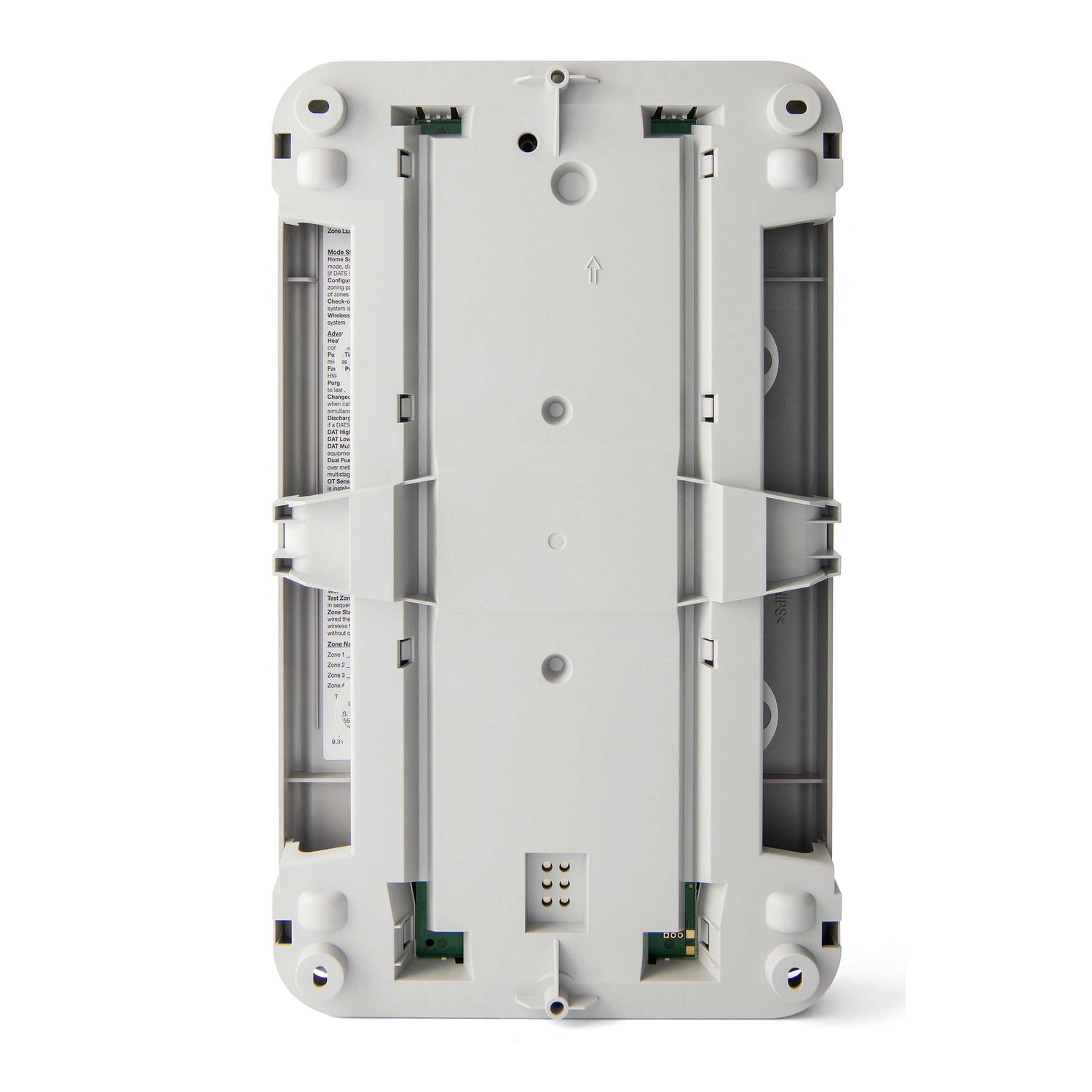

  • Mounts on wall, stud, or return duct

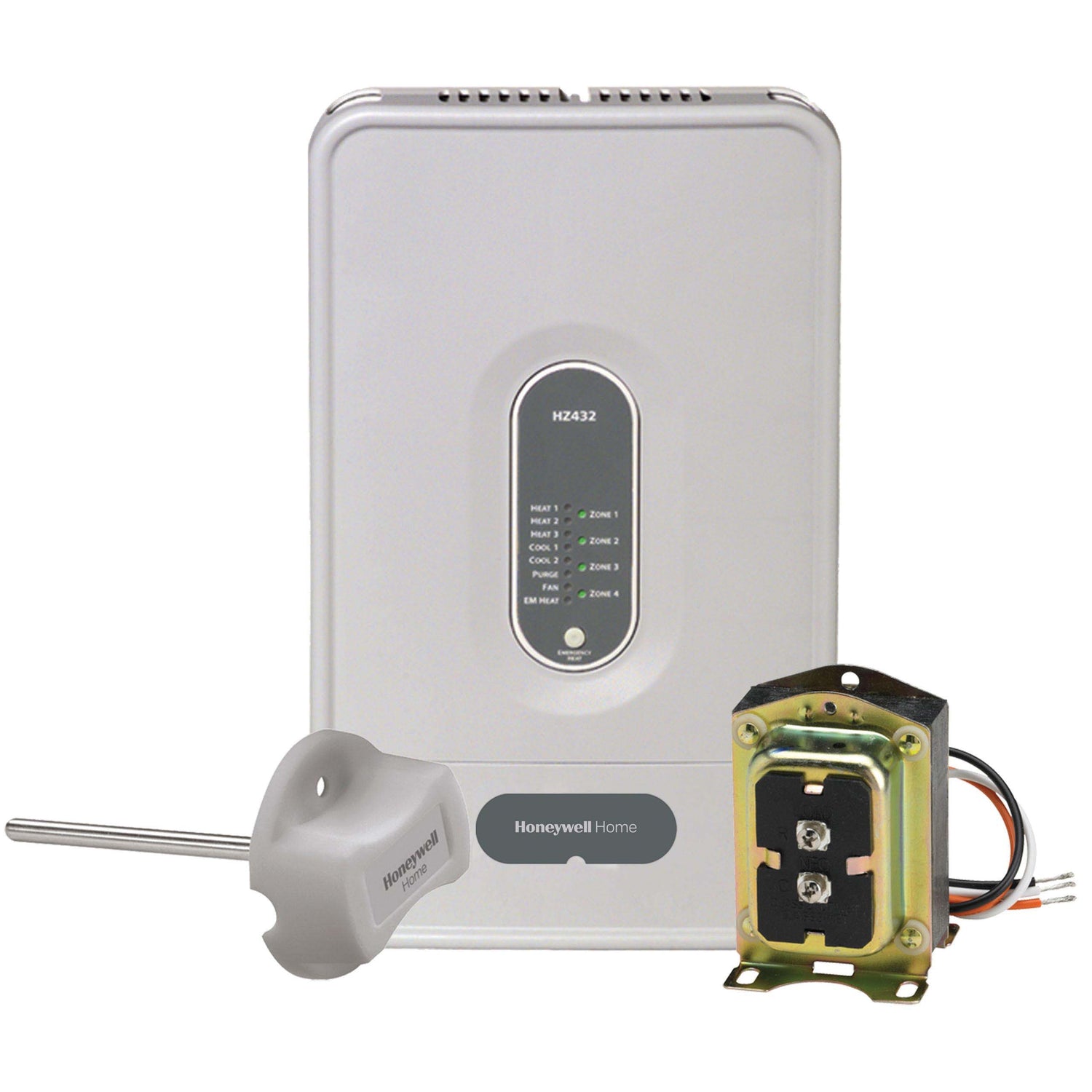

  • Kits include HZ432 Zone Panel, Transformer and Discharge Air Sensor

Specifications

Auto Changeover Yes
Compatible Sensor Discharge Air Temperature Sensor; Outdoor Temperature Sensor
Display Type Not Applicable
LED Functions Stage of heat and damper state
Stages 3 Heat/2 Cool
Product Height 13.42 in
Product Length 8 in
Product Width 1.86 in
Warranty 5 Years

GET STARTED

Professional installations get professional results. Find an authorized professional near you to complete your installation.
