HOTFIX Honeywell Home

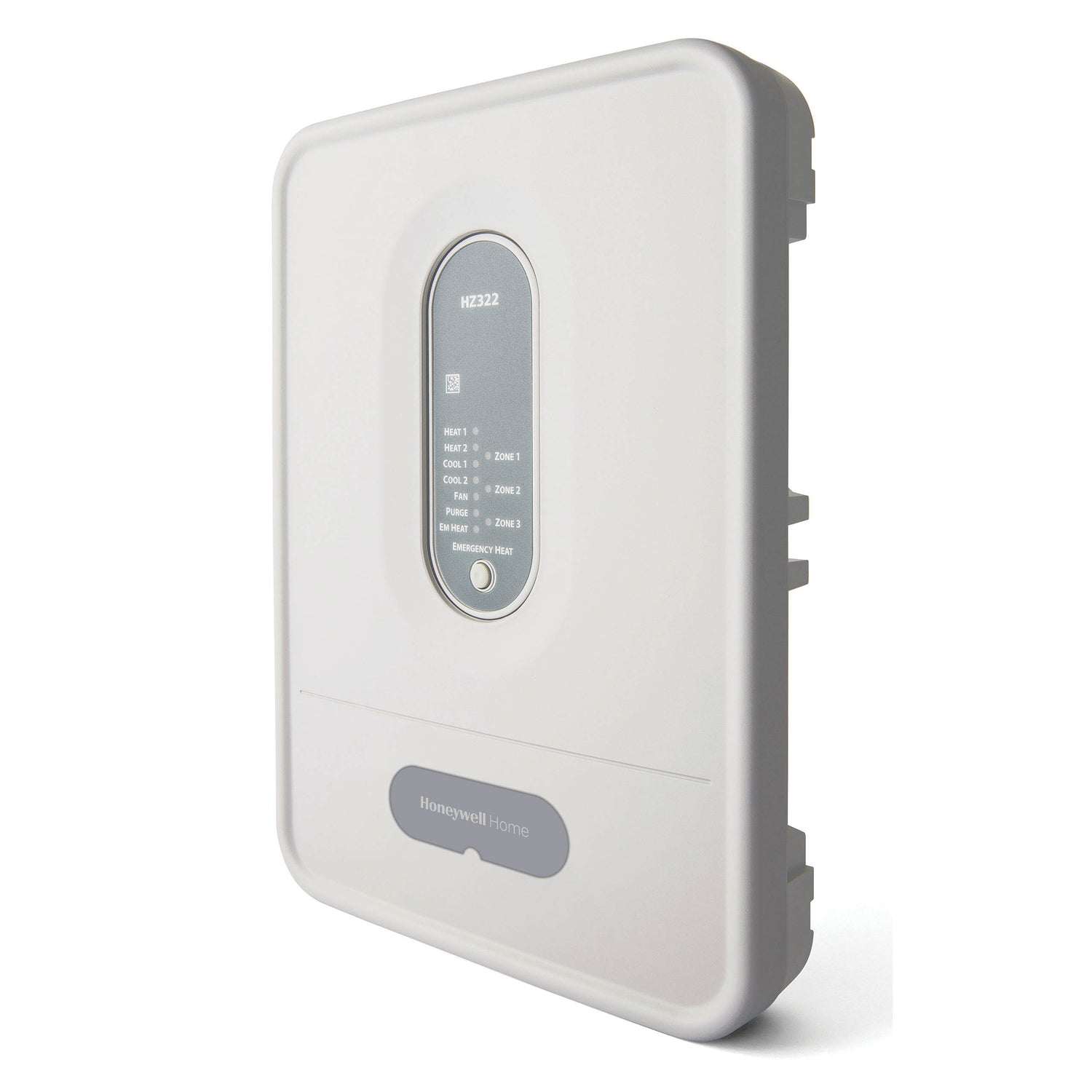

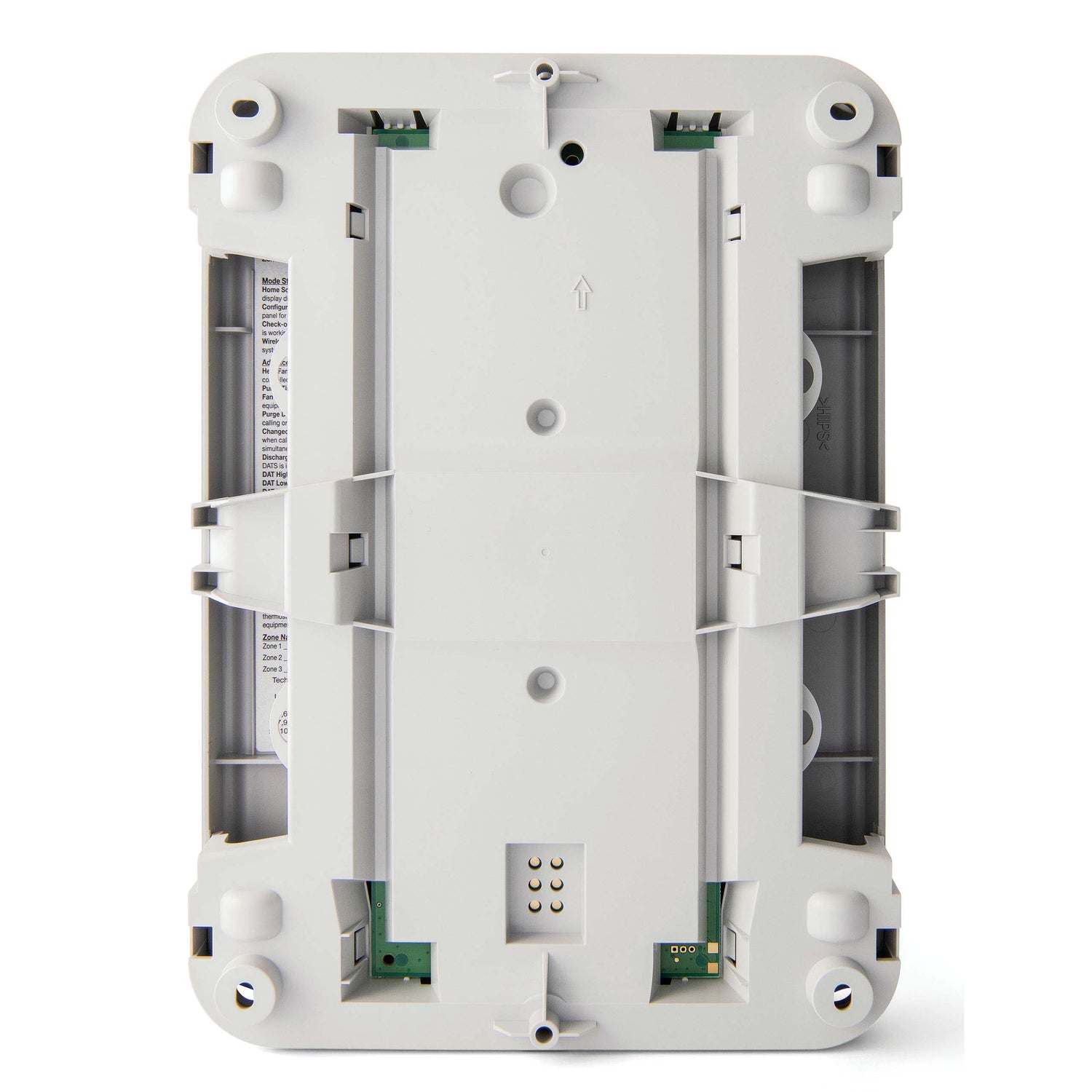

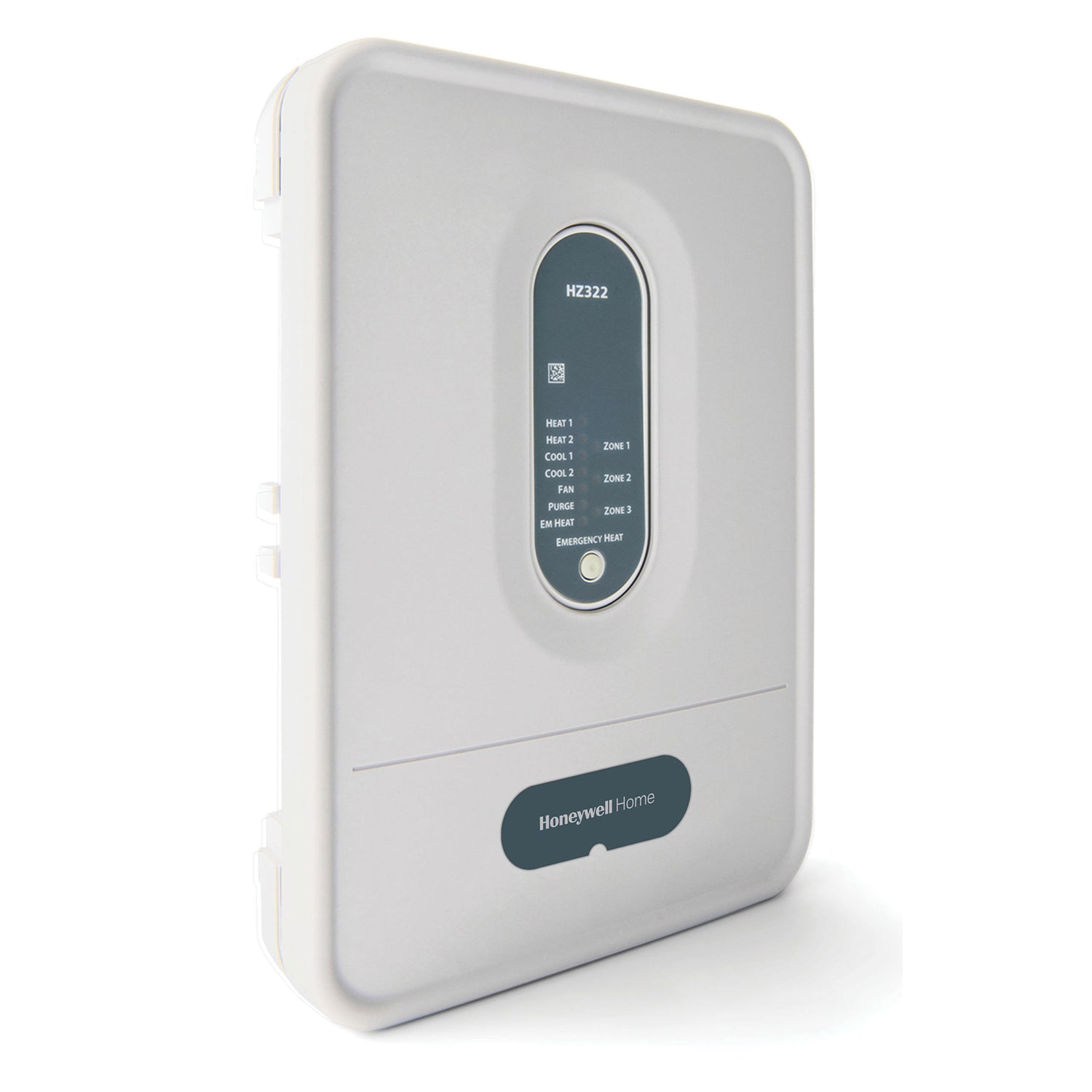

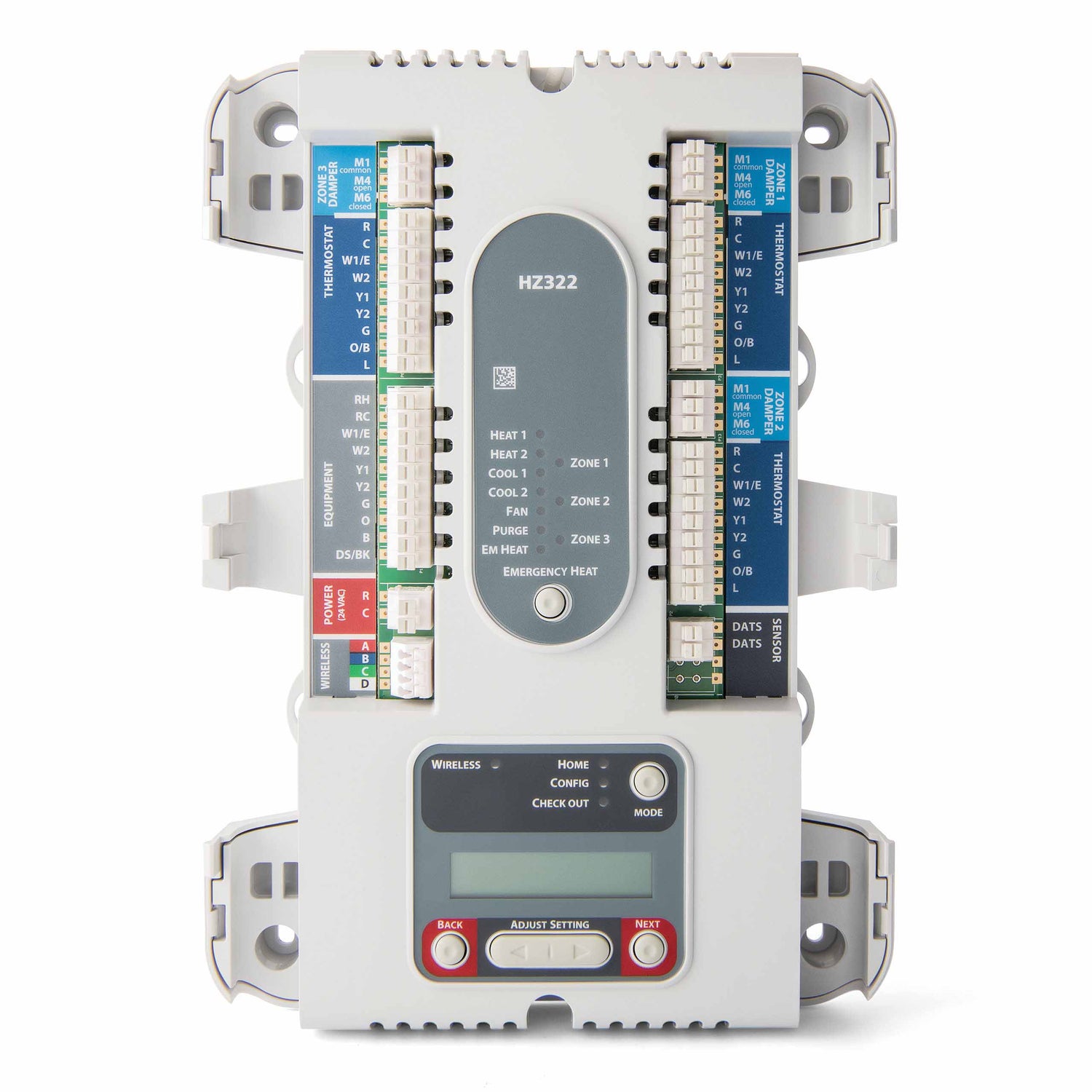

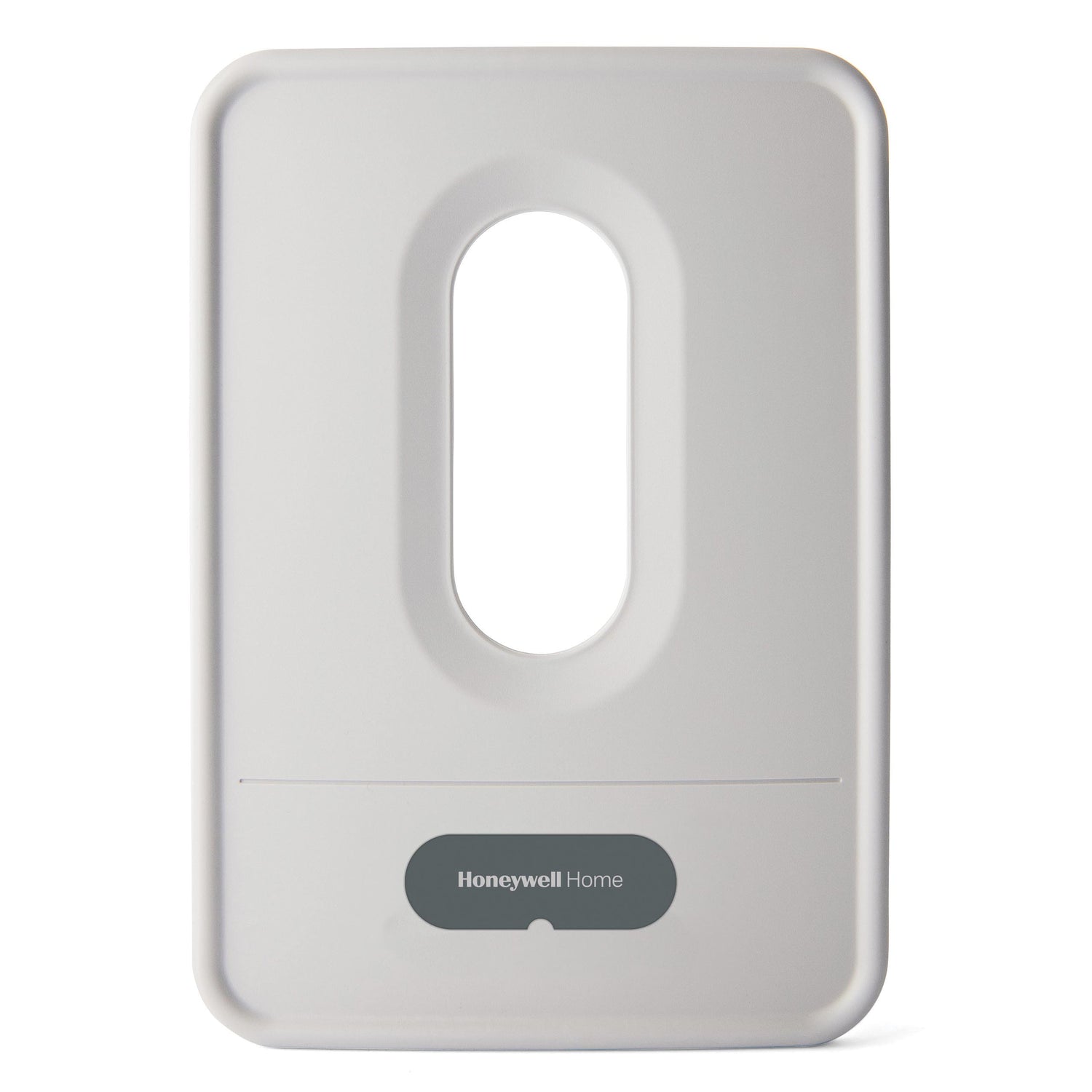

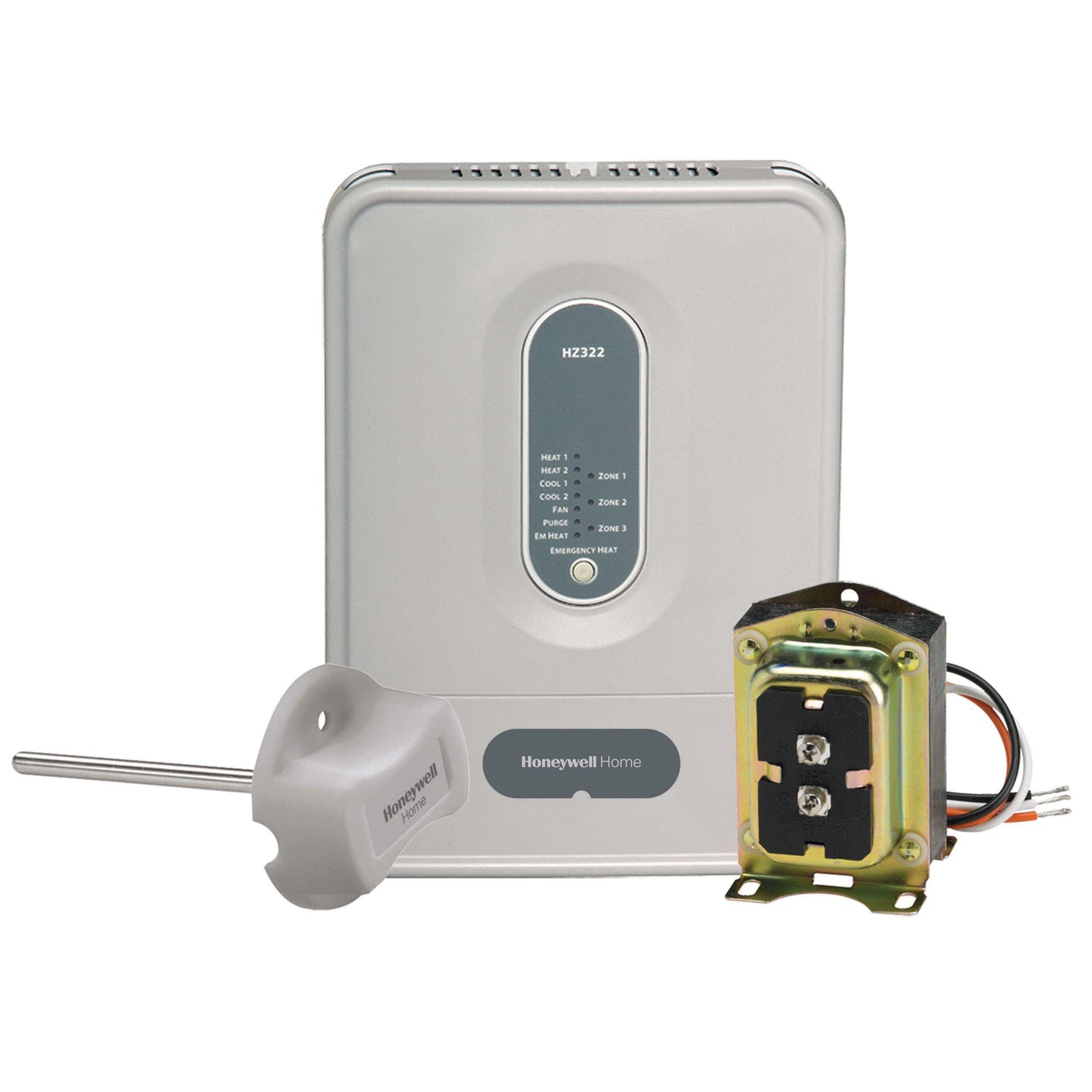

TrueZONE® HZ322 Panel

SKU: HZ322/U

The TrueZONE® HZ322 Panel is for conventional and heat pump applications up to 3 zones (2H, 2C) at 24 Volts. It features robust push terminals, common-sense LEDs, variable-speed fan control, and leaves a smaller environmental footprint.

Pro Install
GO TO SUPPORT
Honeywell Home HOTFIX

Truezone® hz322 Panel

SKU: HZ322/U
Pro Install
Product Overview

Product Overview

This TrueZONE® HZ322 Panel is for use with conventional and heat pump applications. It can be used with up to 3 zones. Complete with Intuitive Installer setup, the easy-to-follow, digital display uses real language to guide users through four easy steps.

Other features include:

  • Standard Checkout Procedure
  • Robust Push Terminals
  • Common-Sense LEDs
  • Clean, Professional Installation
  • Smaller Footprint
  • Variable-Speed Fan Control
  • Discharge Air Temperature Staging
  • RedLINK™ enabled for wireless operation when used with THM4000R1000 wireless adapter
  • Controls up to 2 Heat/2 Cool conventional or 2 Heat/1 Cool heat pump

Specifications

Auto Changeover Yes
Compatible Sensor Discharge Air Temperature Sensor
Display Type Not Applicable
LED Functions Stage of heat and damper state
Stages 2 Heat/2 Cool
Product Height 11.5 in
Product Length 8 in
Product Width 1.86 in
Warranty 5 Years
